Liquidvac - Trailer
The rugged design and heavy duty construction of Presvac Trailers provide superior performance for on or off highway applications. The full opening door and large tipping angle on dump trailers make cleanout easy. Rotary vane pump drive options: diesel engine or hydraulic drive off tractor PTO.
Specifications:
Rotary Vane Options: Presvac, Fruitand, CVS or whatever your company operates.
Rating: Full Vacuum (28HG), 200 - 800 CFM
Code Tank: ASME, DOT 407/412, TC 407/412 or Dual Plated DOT/TC, 35 PSI Max
Tank Material: Carbon Steel, SS 304, SS 316 or SS 316 High Polish
Tank Capacity: 500 - 8000 US Gallons
Popular Options: Multi-Compartment, Water Pump, Transfer Pump, Heated Valves, Custom Hosetrays & Tool Boxes.
View the brochure here: Liquidvac - Trailer.pdf (257 KB)
View other similar products in the categories below by clicking on the link of your interest.
Related Products
Powervac - Trailer
PD Blower Unit Trailer Mounted, Diesel Drive Up to 6400 CFM.
Aquavac - Trailer Trailer
Diesel Drive Liquid Ring Trailer Mounted. 2000 To 4200 CFM.
Brochure
LIQUIDVAC - TANK TRAILER
Rotary Vane, PD Blower, Liquid Ring
Specifications:
Full Vacuum: (28HG) , 450 — 5300 CFM
Code Waste (Debris) Tank: ASME, DOT 412, TC 412, Dual DOT/TC, 35 PSI Max
Non-Code Waste (Debris) Tank: Heavy Duty Construction, Relief @14.5 PSI
Material: Carbon Steel, SS 304, SS 316, SS 316 High Polish
Tank Sizes: 500 - 12000 US Gallons
Presvac Vacuum Tank Trailers provide large volume versatile collection & transport of the widest variety of hazardous and non-hazardous waste. Configured to optimize load capacity for any area of operation.
LIQUIDVAC TANK TRAILER 6000 USG
Vacuum Pump: Utile 625
Free Air: 370 CFM, 266 @ 18” HG, 25 PSI
Driven Via: Air Cooled Diesel Engine
Code: DOT 407/412 (Hazardous Waste)
Tank Size: 6000 US Gallons (5000 Imperial)
Tank Material: Carbon Steel SA36
Options: Full Length Walk Way With 42” High Railing
Sample Unit

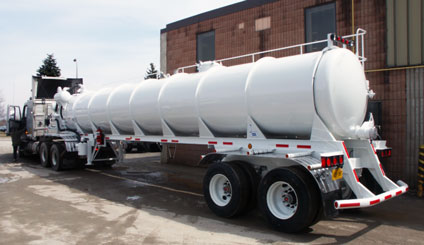

LIQUIDVAC TANK TRAILER 5500 USG
Vacuum Pump: Presvac PV750 Front Mount
Free Air: 450 CFM, 350 @ 18” HG, 35 PSI
Driven Via: Air Cooled Diesel Engine
Code: ASME
Tank Size: 5500 US Gallons ( 4600 Imperial)
Tank Material: Carbon Steel SA36
Options: Full Length Walk Way With 42” High Railing
Sample Unit
LIQUIDVAC TANK TRAILER 9000 USG
Vacuum Blower: Robuschi RBDV85
Free Air: 1600 CFM, 1200 @ 18” HG, 400 @ 27” HG
Driven Via: Tractor Piston Hydraulic System
Code: DOT 407/412 (Hazardous Waster)
Tank Size: 9000 US Gallons (7500 Imperial)
Tank Material: Stainless Steel 316 High Polish
Options: Stainless Steel Hosetrays
Sample Unit
Other Popular Options:
Inspection Port - Decant Valve - Custom Baffles - Multi-Compartment - High Pressure Water Pump - Under Slung Water Tank - Pressure Unloading System - Pneumatic Unloading System - Spill Kit - Pump Cabinet - Heated Valves - HEPA Filter Hook Up Ports - Transfer Pump - Walk Way Railing (42”) - Custom Hose Trays And Tool Boxes - Two Tone Paint - Tank Striping - Many Other Options Available
