Powervac - Code

Powervac - Code

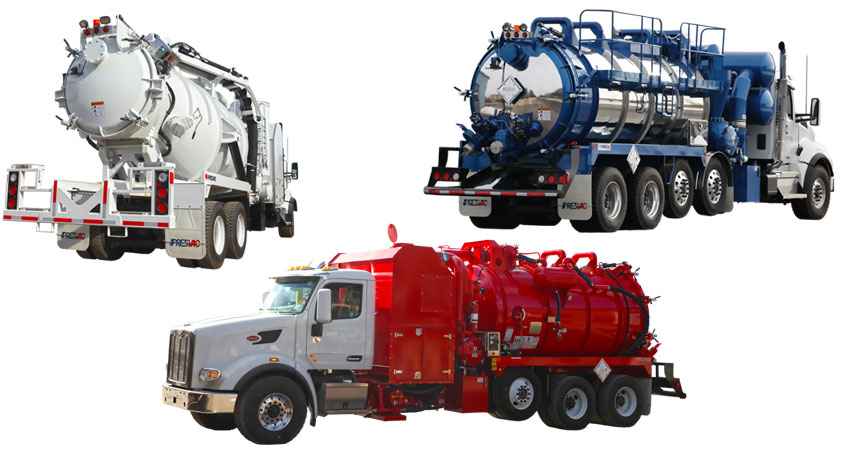

The Presvac Powervac is the ultimate PD Blower Wet/Dry Vacuum Loader. Operate as an air mover for dry applications or use full vacuum and extreme recovery rates for the toughest liquid, sludge and slurry jobs. The material knock out features in the Powervac debris tank minimize carry over. Heavy duty modular filtration configured to blower size and application provides superior blower protection and minimal maintenance.

Specifications:


Blower Options: Hibon, Roots or Robuschi

Rating: Full Vacuum (28HG), 3500 - 6600 CFM

Tank: ASME, DOT 407/412, TC 407/412 or Dual Plated DOT/TC, 35 PSI Max

Tank Material: Carbon Steel, SS 304, SS 316 or SS 316 High Polish

Filtration: Modular Design Optimized For CFM Rating And Application.

Popular Options: Boom, Pressure Off-Load, Water Pump, Sound Proofing, Heated Valves.

View the brochure here: PowerVac.pdf (272 KB)



Related Products


Aquavac - Mini

Hydraulic Or Belt Drive Liquid Ring Unit. 500 - 1600 CFM

Powervac - Suck N Dump

Transfer Case Drive PD Blower Unit With Dump Chutes

Brochure

POWERVAC

PD Blower Wet / Dry Vacuum Loader

Specifications:


Air Flow: 4000, 5300 or 6400 CFM
Full Vacuum: (28HG) Modular Filtration Optimized To Blower & Application
Blower Drive: OMSI Heavy Duty Transfer Case
Code Tank Options: ASME, DOT 407/412, TC 407/412, Dual DOT/TC, 35 PSI Max
Non-Code Tank Options: Heavy Duty Construction, Relief @14.5 PSI
Tank Material Options: Carbon Steel, SS 304, SS 316, SS 316 High Polish

The Presvac Powervac is the ultimate PD Blower Wet / Dry Vacuum Loader. Operate as an air mover for dry applications or use full vacuum and extreme recovery rates for the toughest liquid, sludge and slurry jobs. The material knock out features in the Powervac debris tank minimize carry over. Heavy duty modular filtration configured to blower size and application provides superior blower protection and minimal maintenance.

PowerVac

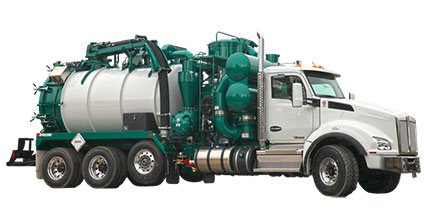

POWERVAC 4000


Blower: Hibon VTB 840XL
Free Air: 4000 CFM, 3300 @ 18” HG, 1600 @ 27” HG
Code: DOT 407/412 (Hazardous Waste)
Tank Size: 16 Cubic YDS, 3250 USG, 2700 IMP
Tank Material: Carbon Steel SA36

Options: PV750 Pressure Off-Load, 35 PSI, Wash Pump: 5 GPM @ 2000 PSI, 100 USG Gallon Water Tank, 8” Power Rotation Loading Boom

Sample Unit


PowerVac 4000

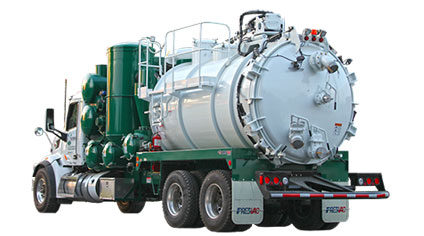

POWERVAC 5300


Blower: Hibon SIAV 8702
Free Air: 5300 CFM, 4600 @ 18” HG, 2950 @ 27” HG
Code: Non-Code (Non-Hazardous Waste)
Tank Size: 16 Cubic YDS, 3250 USG, 2700 IMP
Tank Material: Carbon Steel SA36

Options: 8” Power Rotation Loading Boom

Sample Unit


PowerVac 5300

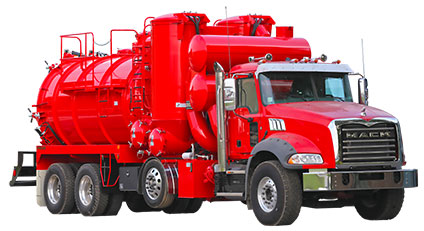

POWERVAC 6400


Blower: Robuschi RBDV 145
Free Air: 6200 CFM, 5100 @ 18” HG, 2900 @ 27” HG
Code: Dual TC/DOT 407/412 (Hazardous Waste)
Tank Size: 16 Cubic YDS, 3250 USG, 2700 IMP
Tank Material: Carbon Steel SA36

Options: Jurop PNR102 Pressure Off-Load, Heated Valves

Sample Unit


PowerVac 6400

Other Popular PowerVac Options:
20” Top Manway - Rear Loading Port - Tank Anti-Surge Baffle - 8” Power Rotation Loading Boom - Pressure Unloading System - Pneumatic Unloading System - High Pressure Water Pump - High Rail - Acoustic Enclosure - Heated Valves - HEPA Filter Hook Up Ports - Transfer Pump - Walk Way Railing (42”) - Custom Hose Trays And Tool Boxes - Two Tone Paint - Tank Striping - Many Other Options Available
