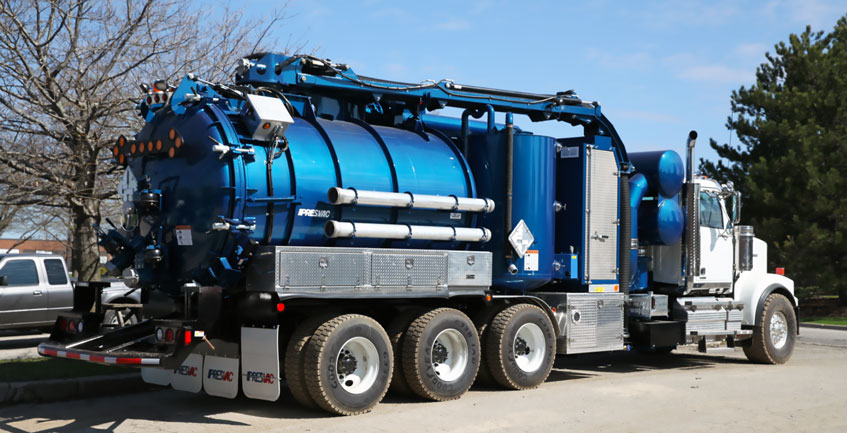

Hydroexcavator

Hydroexcavator

The Presvac Hydrovac is a versatile hydro-excavator designed for cold weather operation. The high vacuum blower allows for extraction of all types of soils, gravel, rock, clay, water and silt. The material knock out features in the debris tank minimize carry over. Modular filtration configured to blower size provides superior blower protection and minimal maintenance. A heavy duty boom (up to 25' long) with 6 way hydraulic power and wireless controls for: boom functions, water pump (soft start), vacuum breaker and truck engine speed give the operator complete control. Also available in code construction.

Specifications:


Blower Options: Hibon, Roots or Robuschi

Rating: Full Vacuum (28HG), 3500 - 6600 CFM

Code Tank: ASME, DOT 407/412, TC 407/412 or Dual Plated DOT/TC, 35 PSI Max

Non-Code Tank: Heavy Duty Construction, Relief @ 14.5 PSI

Tank Material: Carbon Steel, SS 304, SS 316 or SS 316 High Polish

Filtration: Modular Design Optimized For CFM Rating And Application.

Water Pump: 10 - 20 GPM, 3000 - 6000 PSI Capacities Available

Burner: 980,000 BTU Diesel Burner

Popular Options: Accoustic Enclosure, Heated Valves, Longer Boom, Bigger Burner

View the brochure here: Hydroexcavator.pdf (299 KB)

View other similar products in the categories below by clicking on the link of your interest.

Related Products


Combovac

Presvac ComboVac designed for your toughest oil field cleaning jobs.

VOC Srubber

Designed for VOC capture using liquid and carbon filtration mediums

Brochure

Hydroexcavator

Non-Destructive Vacuum Excavation

Specifications:


Air Flow: 3800, 5300 or 6400 CFM - Full Vacuum (28HG) Modular Filtration Optimized To Blower & Application
Blower Drive: OMSI Heavy Duty Transfer Case
Code Waste (Debris) Tank: ASME, DOT 412, TC 412, Dual DOT/TC, 35 PSI Max
Non-Code Waste (Debris) Tank: Heavy Duty Construction, Relief @14.5 PSI
Material: Carbon Steel, SS 304, SS 316, SS 316 High Polish

The Presvac Hydrovac is a versatile hydro-excavator designed for cold weather operation. The high vacuum blower allows extraction of all types of soils, gravel, rock, clay, water and silt. The material knock out features in the Hydrovac debris tank minimize carry over. Modular filtration configured to blower size provides superior blower protection and minimal maintenance. Heavy duty boom (up to 25’long) with 6 way hydraulic power and wireless controls for all boom functions, water pump (soft start), vacuum breaker and truck engine speed gives the operator complete control.

Hydroexcavator



HYDROVAC 6200


Blower: Robuschi RBDV 145
Free Air: 6200 CFM, 5100 @ 18” HG, 2700 @ 27” HG
Driven Via: OMSI Heavy Duty Transfer Case
Waste Tank: 2900 US Gallons (2400 Imperial) C.St. Heavy Duty Construction With Relief Valve @ 14.5 PSI
Water Tank: 1200 US Gallons (1000 Imperial) SS 304
Boom: 8” Hose, 23’ Reach
Water Pump: 18 GPM, Up To 3500 PSI
Water Heater: 980,000 BTU Diesel Burner

Options: Acoustic Enclosure, With Insulated Storage, Custom Aluminum Tool Boxes

Sample Unit


Hydrovac 6200



HYDROVAC 5300


Blower: Hibon SIAV 8702Free Air: 5300 CFM, 4600 @ 18” HG, 2950 @ 27” HG
Driven Via: OMSI Heavy Duty Transfer Case
Waste Tank: 2900 US Gallons (2400 Imperial) C.St. Heavy Duty Construction With Relief Valve @ 14.5 PSI
Water Tank: 1200 US Gallons (1000 Imperial) SS 304
Boom: 8” Hose, 23’ Reach
Water Pump: 10 GPM, Up To 6000 PSI
Water Heater: 980,000 BTU Diesel Burner

Options: Acoustic Enclosure, With Insulated Storage, Hi-Rail Gear

Sample Unit


Hydrovac 5300

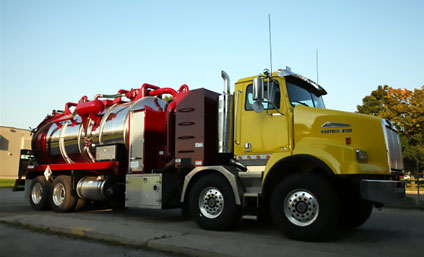

HYDROVAC 1600


Blower: Robuschi RBDV85 Robox
Free Air: 1600 CFM, 1200 @ 18” HG, 400 @ 27” HG
Driven Via: Heavy Duty Hydraulic Piston System
Code: Dual TC/DOT 407/412 (Hazardous Waste)
Waste Tank: 4200 US Gallons (3500 Imperial) SS 316
Water Tank: 700 US Gallons (580 Imperial) SS 304
Water Pump: 5 GPM, 4000 PSI
Water Heater: 440,000 BTU Diesel Burner

Options: Heated Valves Posi-Ground System

Sample Unit


Hydrovac 1600

Other Popular Hydrovac Options:
20” Top Manway - Rear Loading Port - Tank Anti-Surge Baffle - 8” 25’ Two Stage Power Rotation Boom - Other Pressure/flow Water Pump - 980,000 BTU Hotsy Burner - High Rail - Pressure Unloading System - Acoustic Enclosure - Heated Valves - Grounding Studs - Walk Way Railing (42”) - Line-X Spray Lining - Custom Hose Trays And Tool Boxes - Two Tone Paint - Tank Striping - Many Other Options Available
